How To Make A Gear In Solidworks 2019

Under mechanical mates.

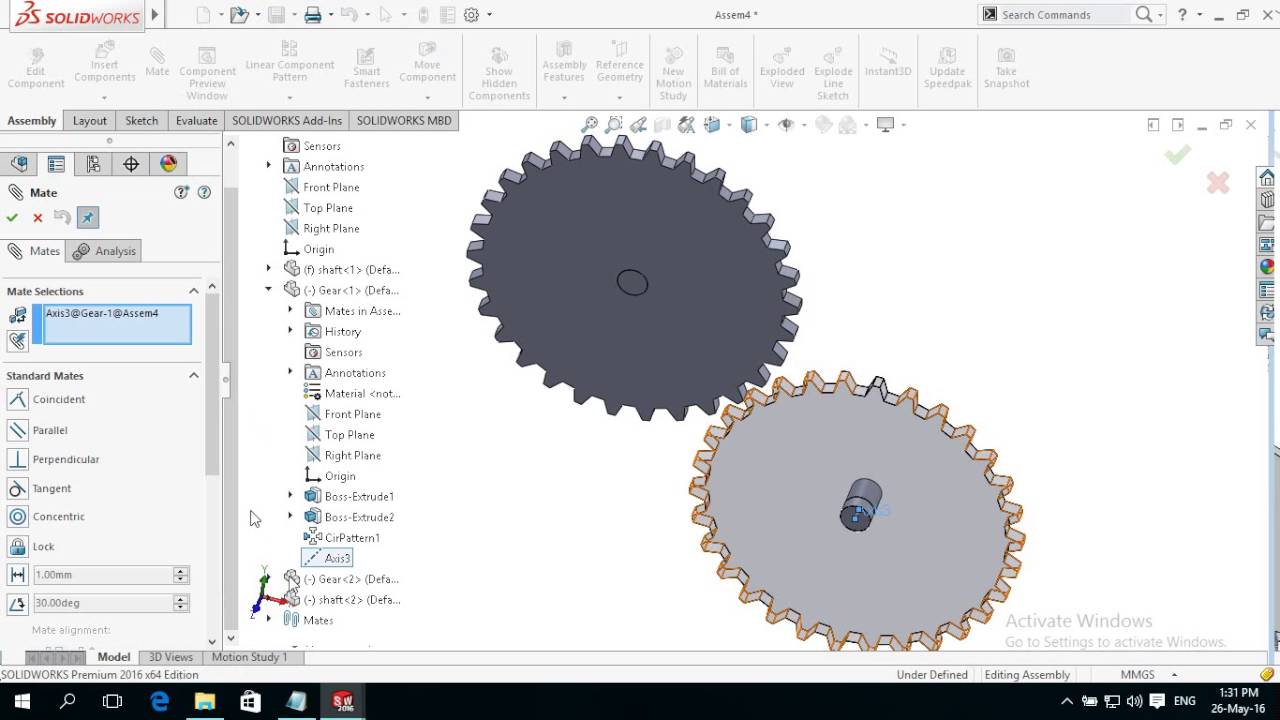

How to make a gear in solidworks 2019. Look at the picture below. Under mate selections select the rotation axes on the two gears for entities to mate. Select the required gb gears and clear the unnecessary ones. Welcome to solidworks tutorials for beginners and in this solidworks exercises you are going to learn to make gear 3d model it contains the both video and step by step pictorial explanations for creating different types of gear spur gear helical gear bevel gear etc in the graphics area of this cad software.

And then choose the ansi metric and click it twice. In this solidworks video tutorial i will tell you how to design gear mate in solidworks assembly. The software assigns gear. To include gb standard gears in toolbox.

Usually in each country they have their own standards. In the propertymanager under mechanical mates click gear. Solidworks tutorial how to create gear. Then choose and click the gear twice.

To add a gear mate. Solidworks tutorial gear mate and rotation. Click mate assembly toolbar or insert mate. From the configure hardware page click gb power transmission and then click gears.

But in this solidworks tutorial i will use ansi metric. About this channel here you will find videos related to 1. From the windows start menu click all programs solidworks version solidworks tools toolbox settings. After that the kind of gear choices will appear.

Click the standard and choose power transmission menu click gear click spur gear and right click and choose create part and wait a second until you see the gear and parameter choice.
